The tool allows you to extract already installed drivers from your system with just a few clicks.
For the export you can also choose to package the driver into a Module (EMD) for Windows Embedded 8 Standard, a Component (SLD) for Windows XP Embedded & Windows Embedded Standard 2009 or you can just export the files.
The tool can be very helpful if you just have a system that has all the drivers pre-installed and you don’t have the driver CD at hand. It also saves you a lot of time because you don’t need to work with Module Designer or Component Designer to create your packages.
You can also import an INF file to create a component out of it – so the driver must not be installed on the system to extract it.

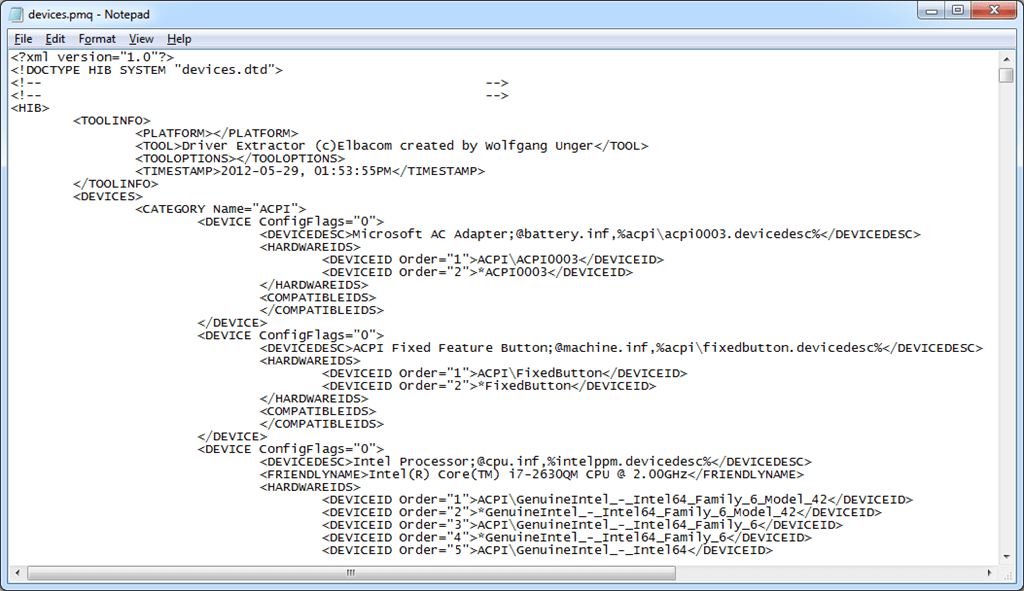

It also support creating a devices.pmq file that contains all hardware information of your device. The output is identical to the Target Analyzer Probe output.
The advantage of this function is that you can use one tool to output the hardware information and drivers at once so you can easily import the drivers into your development machines database or catalog and import them automatically by importing the PMQ file.
Run the tool and select the devices of which you want to extract the drivers from.
Double-click a device to see which files are installed for the current device.
In the toolbar you can select the output format:
- Windows Embedded 8 Standard Module (EMD)
- Windows XP Embedded / Windows Embedded Standard 2009 Component (SLD)
- Export only
Click the Export button and select an output directory.
This will export all drivers to the selected format in the specified output folder.
If you want to convert a driver to a module or component you can select File / Import INF and select the INF file of the driver.
Then again select an output folder. Driver Extractor will create the package there.
Windows Embedded Standard 7 (RTM & SP1)
Windows Embedded 8 Standard (RTM)
Windows Embedded POSReady 7 (RTM)
Windows Embedded 8.1 Inudstry Pro (RTM)
DriverExtractor.exe [tap] [export] [wes8|xp|copy] [path ]
tap – will export the device information to devices.pmq in the current working directory. If path is specified it will be stored in this location.
export – will export all drivers in the format specified (wes8/xp/copy)
wes8 – Windows Embedded 8 Standard Module
xp – XP Embedded / Windows Embedded Standard 2009 Component
copy – copy drivers only
path – specifies the output path
This tool is a free extra tool to the Elbacom Embedded Toolkit.
Click here to get additional information for the Elbacom Embedded Toolkit: http://www.elbacom.com/elbacom-embedded-toolkit
